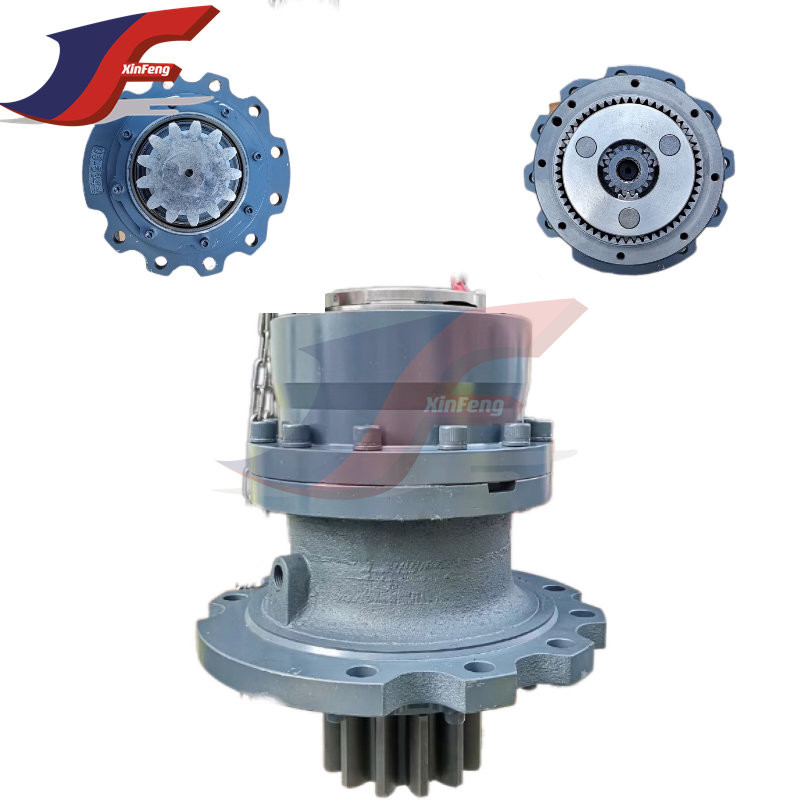

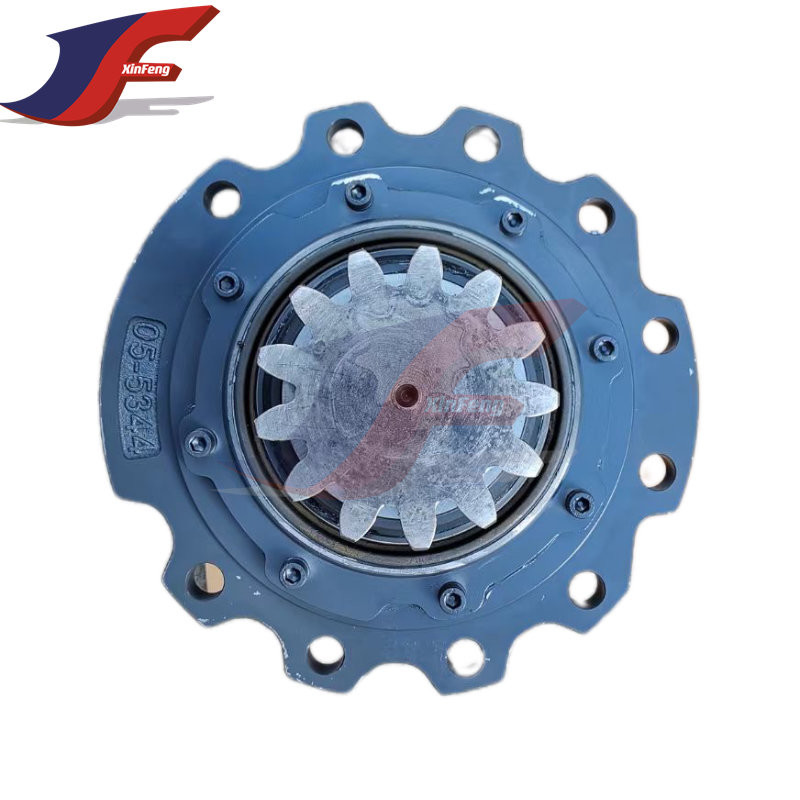

Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi

  • 1
  • 2
  • 3

Brand Name : Hitachi

Model Number : EX120-2

Certifiion : ISO9001

Place of Origin : Japan

MOQ : 1 Sets

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500-Sets/month

Delivery Time : 3-5 days

Packaging Details : Wooden Case Packing

Part Number : 203-26-00112

Video outgoing-inspection : Provided

Product name : EX120-2 Swing Gearbox

Delivery time : 1-3 days

Warranty : 6 Months

Packing : Wooden box,standar packing with safety

Product class : Excavator swing motor Gearbox

Quality : Good quality

Contact Now

Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi

Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For HitachiExcavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For HitachiExcavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi
Product Descriptio


Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi

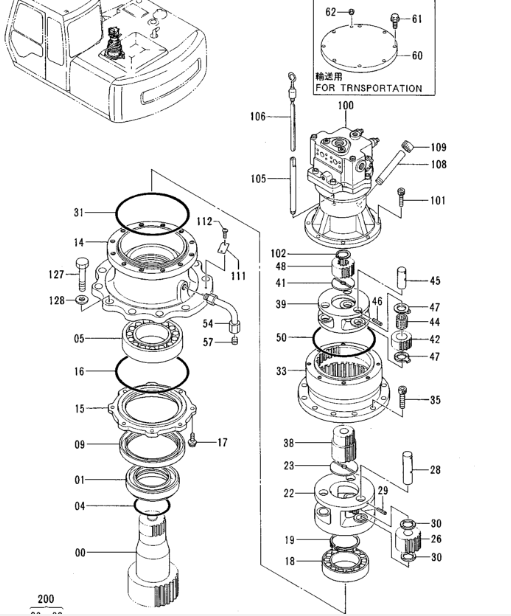

Pos. Part No Qty Parts name Comments
0 2028036 [1] SHAFT;PROP.
1 4244693 [1] SLEEVE
4 A811100 [1] O-RING
5 4248609 [1] BRG.;SPH.ROL.
9 4244691 [1] SEAL;OIL
14 1014526 [1] HOUSING T 1017261
14 1014526 [1] HOUSING 3058620
14 1017261 [1] HOUSING
15 3049949 [1] COVER T 3058620
15 3049949 [1] COVER 1017261
15 3058620 [1] COVER
16 4247567 [1] O-RING
17 J011035 [8] BOLT;SEMS
18 969154 [1] BRG.;SPH.ROL. I 4293424
18 4293424 [1] BRG.;SPH.ROL.
19 991350 [1] RING;RETAINING
22 2031003 [1] CARRIER
23 4258089 [1] PLATE;THRUST
26 9732811 [3] GEAR;PLANETARY
28 4244696 [3] PIN
29 4063351 [3] PIN;SPRING
30 4266255 [6] PLATE;THRUST
31 4247567 [1] O-RING
33 2028037 [1] GEAR;RING
35 M341450 [12] BOLT;SOCKET
38 3046918 [1] GEAR;SUN
39 2031106 [1] CARRIER
41 4244904 [1] PLATE;THRUST
42 3046916 [3] GEAR;PLANETARY
44 4249345 [3] BRG.;NEEDLE
45 4244689 [3] PIN
46 4116307 [3] PIN;SPRING
47 4269480 [6] PLATE;THRUST
48 3046917 [1] GEAR;SUN
50 4244541 [1] O-RING
54 8050210 [1] PIPE
57 94-2012 [1] PLUG
60 8053413 [1] COVER (for transportation)
61 J011050 [8] BOLT;SEMS (for transportation)
62 94-2011 [1] PLUG (for transportation)
100 4241171 [1] MOTOR;OIL
101 M341028 [8] BOLT;SOCKET
102 927488 [1] RING;RETAINING
105 4264452 [1] PIPE
106 3053451 [1] GAUGE;LEVEL
108 4255227 [1] PIPE
109 4255226 [1] CAP P 4298608
109 4298608 [1] CAP
111 3053093 [1] NAME-PLATE
112 M492564 [2] SCREW;DRIVE
127 J932060 [10] BOLT
128 4018545 [10] WASHER
200 9111265 [1] SWING DEVICE (WITHOUT MOTOR)



Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi



Theory

The excavator gearbox is an important part of the excavator transmission system. Its main function is to transmit the power of the engine to the working device of the excavator through gears to realize operations such as excavation, loading, and steering. The following is the basic principle of the excavator gearbox:

Gear transmission: The excavator gearbox uses gear transmission to realize the transmission of power. A gear is a disc-shaped mechanical part with a series of tooth-shaped protrusions on it. The gearbox usually contains multiple gears, which transmit power through meshing. The larger gear is called the driving gear, and the smaller gear is called the driven gear. The driving gear is powered by the engine and transmits power to the driven gear through the meshing of the gears, thereby driving the working device of the excavator.
Gear ratio: The gears in the gearbox realize the conversion of speed and torque through different sizes of teeth. The gear ratio in the gearbox refers to the ratio of the number of teeth of the driving gear and the driven gear. When the number of teeth of the driven gear is less than that of the driving gear, the transmission ratio is greater than 1, which can achieve torque amplifiion, which is suitable for working conditions requiring large torque output. When the number of teeth of the driven gear is greater than that of the driving gear, the transmission ratio is less than 1, which can achieve speed amplifiion, which is suitable for working conditions requiring high-speed operation.
Gearbox structure: Excavator gearboxes usually consist of multiple gears and shafts. Gears and shafts are supported by bearings to enable smooth rotation. In the gearbox, gears are usually distributed on different parallel shafts, and power transmission is achieved through synchronous meshing. The gearbox may also include accessories such as clutches and brakes to achieve control and protection of the transmission system.
Lubriion system: The excavator gearbox will generate greater friction and heat during operation, so a lubriion system is required to reduce friction, cool and protect the gearbox. The lubriion system usually includes components such as oil pumps, oil tanks and oil pipes to transport lubriing oil to various parts of the gearbox to form a lubriing film to reduce gear wear and friction.
In summary, the excavator gearbox realizes power transmission through gear transmission and speed and torque conversion through gear ratio. The structure is complex and requires a lubriion system to ensure normal operation. The appliion of these principles enables excavators to complete various work tasks efficiently and accurately.



Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi


About Xinfeng Machinery (XF) parts:

Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi
 Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi



Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi

Advantages
Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi

Warehouse Display
Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi
Packaging and Delivery

Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi
Excavator Parts EX120-2 EX120-3 Swing Gearbox 9111265 9097684 For Hitachi


FAQ
1.How to quickly and accurately buy products what lneeded?
A:Provide the original parts number to us to check.

2.How long have you been in the excavator
A:We are engaged in excavator parts since 1998


3.lfI don't know the part number,what shouldI do?
A:Please send us size and pictures of old products.

4.What is the warranty of the products?
A:The warranty is 6/12 Months based on the specific product.


5.How long is your delivery time?
A:The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

6.Which shipping term you can supply?

A:By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)


7.What is your MOQ?
A:Small order and sample order are acceptable


8.Do you have any After-Sales service?
A:Yes!Our
